The HydroTap Classic Range Raised Font / Drip Tray is an optional accessory that should be specified with any of our Classic Range taps (Classic, Classic Plus, Elite Plus and Touch-Free Wave) when the tap is installed away from the sink. The Classic Range Raised Font / Drip Tray is available in six finishes to match the corresponding taps.
HydroTap Classic Range Raised Font

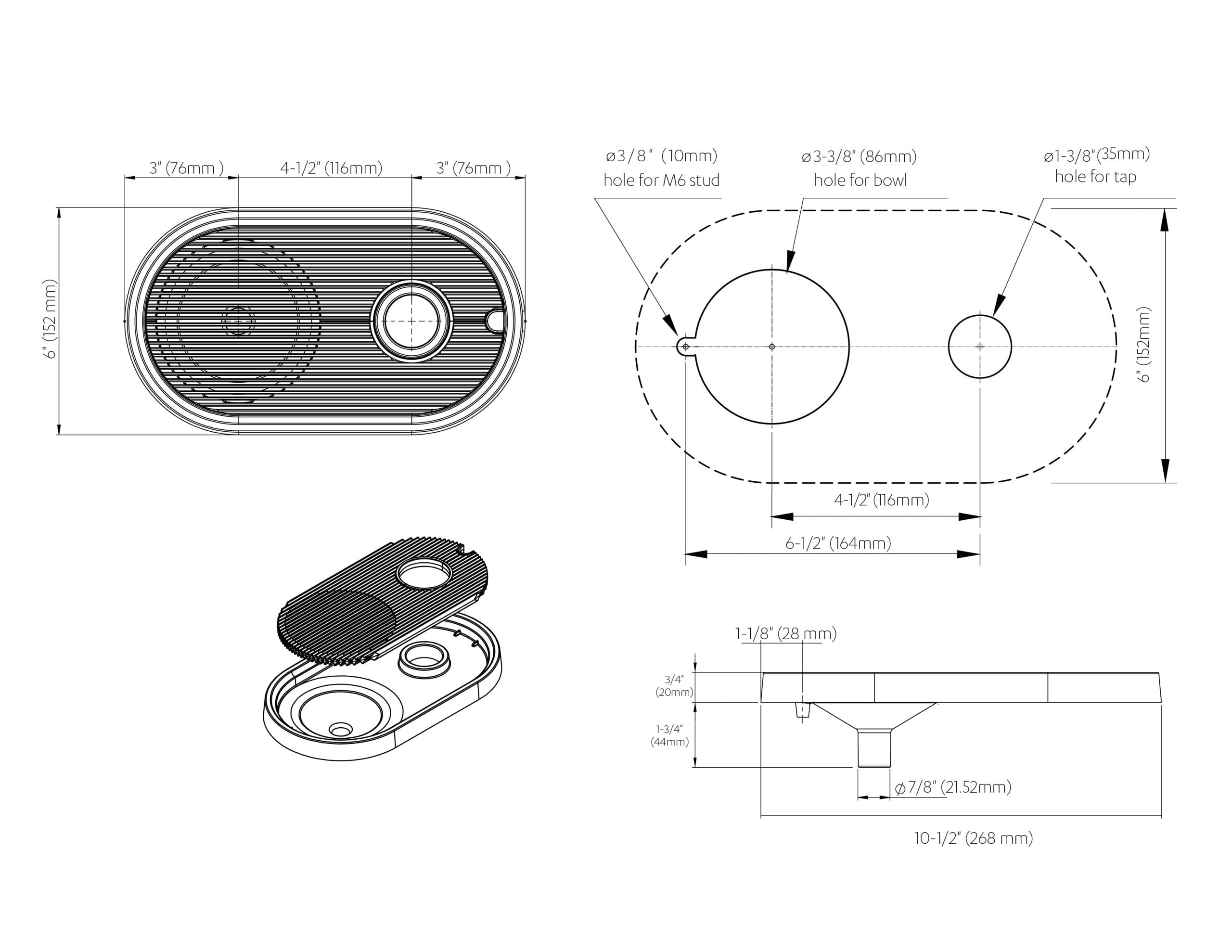

HydroTap Classic Range Raised Font / Drip Tray – Specifications:
- Space Requirements: 10 1/2″ long x 6″ wide (268mm x 152mm)
- Hole size for bowl: 3 3/8″ (86mm)
- Hole size for tap: 1 3/8″ (35mm)
- Hole for M6 stud: 3/8″ (10mm)

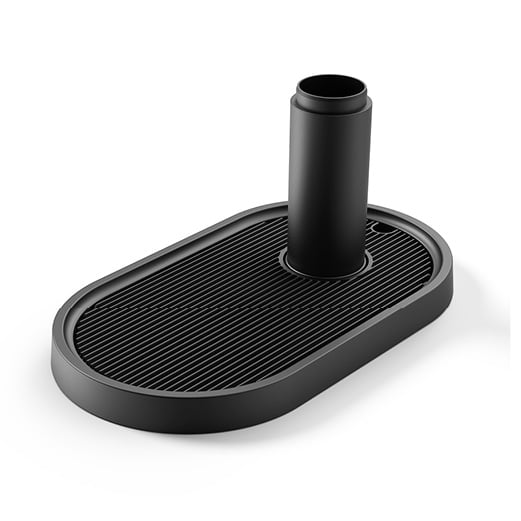

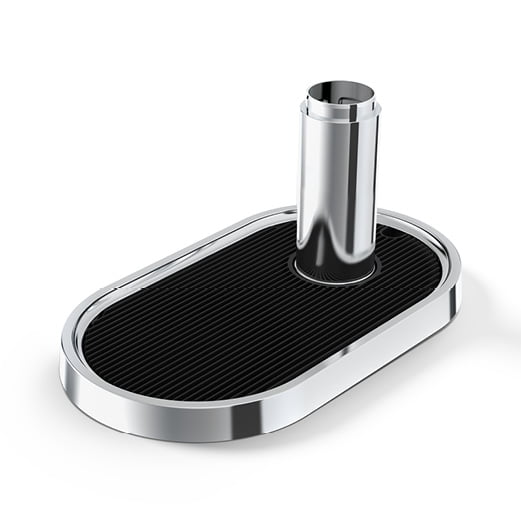

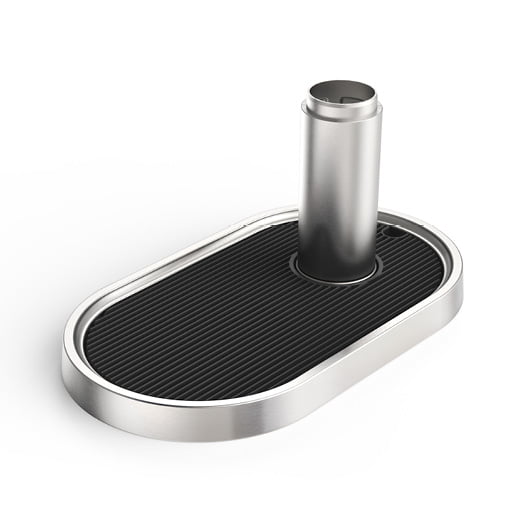

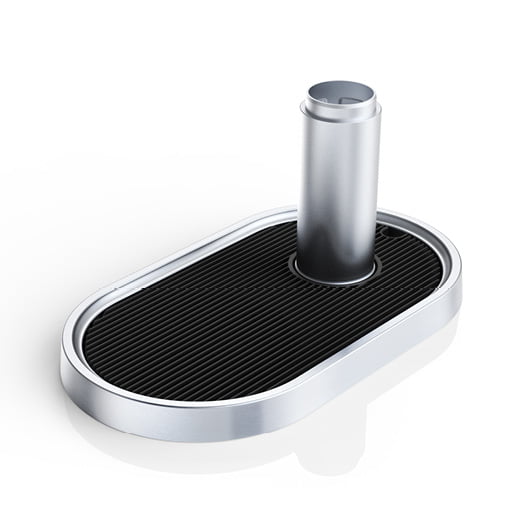

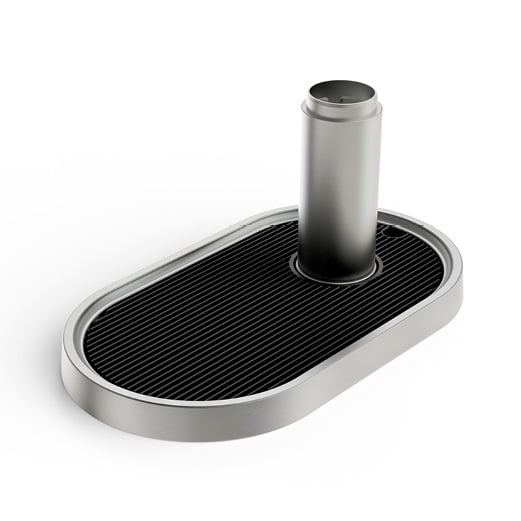

- Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Brushed Nickel & Gunmetal
