The ultimate in functionality, the HydroTap Celsius All-In-One (AIO) is fitted over your sink and offers all five water types – filtered boiling, chilled and sparkling drinking water, plus unfiltered hot & cold water – from a single tap. And it’s all wrapped up in Zip Water’s enduringly stylish design. The HydroTap AIO is available in seven stylish finishes to complement any aesthetic.
HydroTap Celsius All-in-One for Home
HydroTap Celsius All-in-One (AIO) Tap Specifications:
- Style: HydroTap Celsius All-in-One – includes child safety lock
- Hole Size: 2″ (50mm)

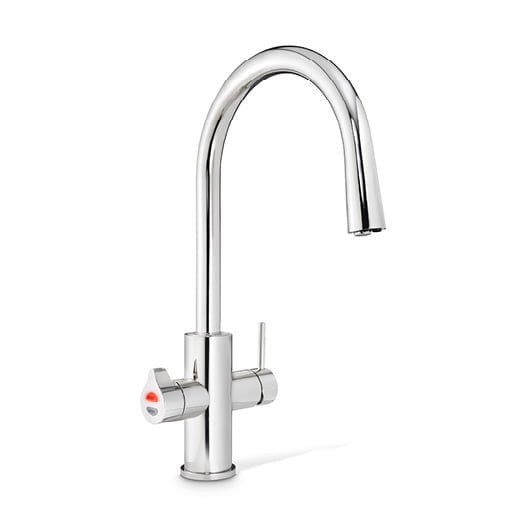

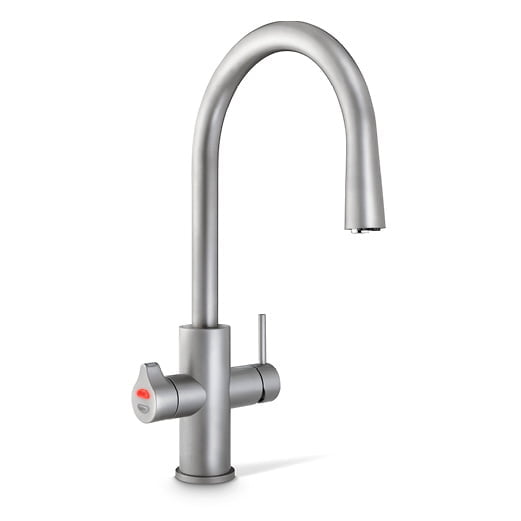

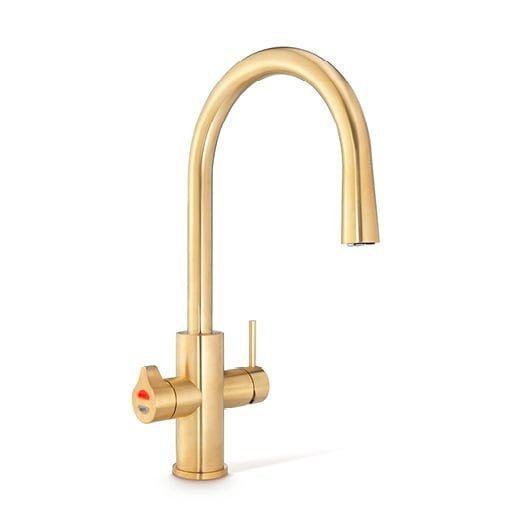

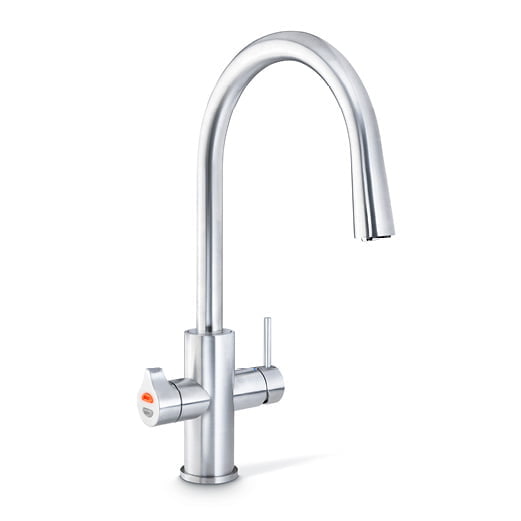

- Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Nickel, Brushed Nickel & Gunmetal
- Installation: Over Sink or On Drip Tray (Optional Font – see accessories)
- Flow Rate Max: 1.8 gpm / 6.81 lpm
- Sparkling Water Flow Rate: 0.4 gpm / 1.51 lpm
120V BCS Command Center Specifications:
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 2 x ½” BSP – isolation valve is required within 3’ (0.9m) of the installation
- Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 73psi (5.13kg/cm2) Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1 size – replace every 1,100 gallons / 4,163 liters or 12 months
- Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
- Dimensions (WxDxH): 13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm
- Minimum Air Gap: Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
- Minimum Cabinet Size: 18” wide x 24” deep / 457mm wide x 610mm deep
- Maximum Hose Connection Length: 3’ / 0.9m (tap to command center)
- Minimum Distance Needed for Installation: 15” / 381mm (interior wall to garbage disposal)
- Dry Weight: 75lbs / 34kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 2 years
- Compatible CO2 Cylinder: Zip Water 1.5lb CO2 or 5lb CO2 (if space allows) with CGA-320 fitting
- CO2 Operating Pressure: Min 39psi – Max 44psi / Min 2.74 – Max 3.09kg/cm2
