HydroTap Classic for Office

HydroTap Classic for Office

HydroTap Classic BCS in Chrome

Offering the choice of instant filtered boiling, chilled or sparkling water, the iconic design of the HydroTap Classic remains a much-loved and popular choice suited to any workplace* aesthetic. With six exquisite finish options to complement a range of remarkable functions the HydroTap Classic is the perfect upgrade to your office water dispenser.

*Our commercial systems are ideal for up to 60 users.

Request Quote
Request BIM Library

Please use the expandable menus below to view full product specifications.

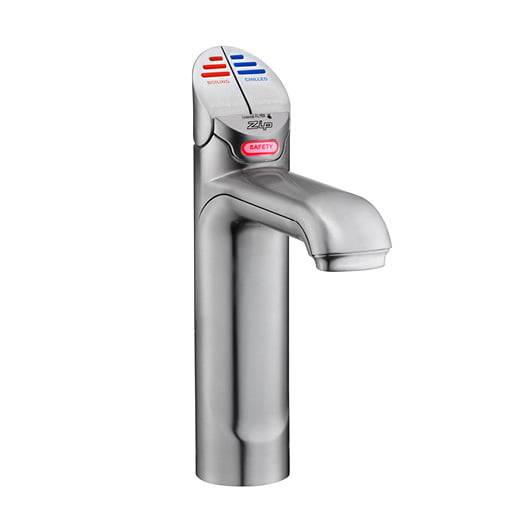

240V Classic Boiling, Chilled, Sparkling (BCS) Specifications

Classic BCS Tap Specifications:
  • Style: HydroTap Classic BCS – includes child safety lock
  • Hole Size: 1-3/8″ / 35mm
  • Available Finishes: Chrome, Brushed Chrome, Matte Black

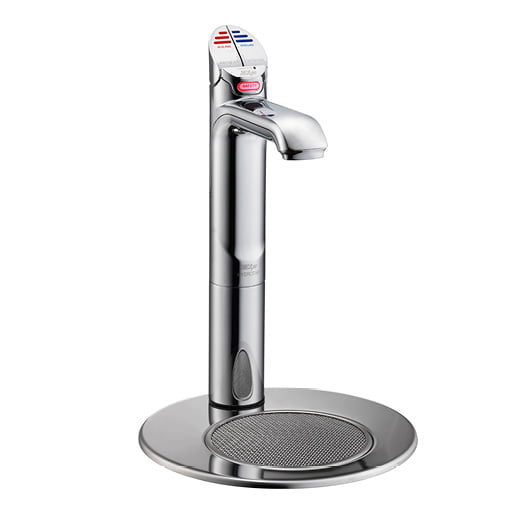

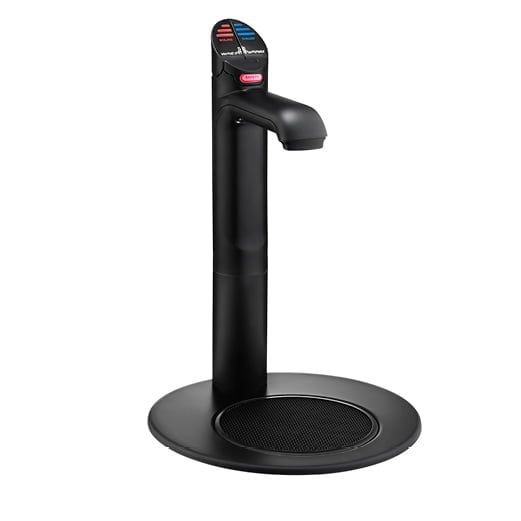

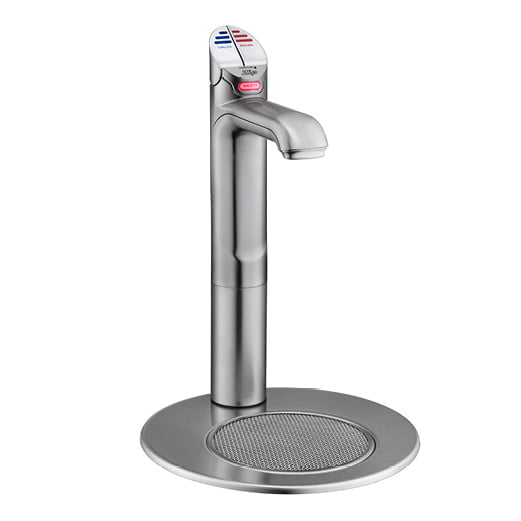

  • Installation: Over sink as a secondary tap or on optional font/drip tray
  • Flow Rate Max: 1.8 gpm / 6.81lpm
240V BCS Command Center:
  • Water Pressure: Min 30psi – Max 75psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
  • Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
  • Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1-Size – Replace every 1,100 gallons /4,163 liters or 12 months
  • Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
  • Dimensions (WxDxH): 13.4″ x 18.2″ x 13.1″ / 339mm x 461mm x 333mm
  • Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
  • Dry Weight: 85lbs / 38.5kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42 & 53, cUL, CEC
  • Warranty: 2 years
Download Specifications

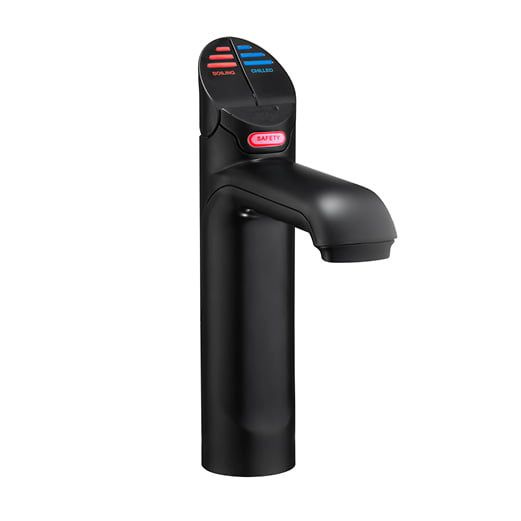

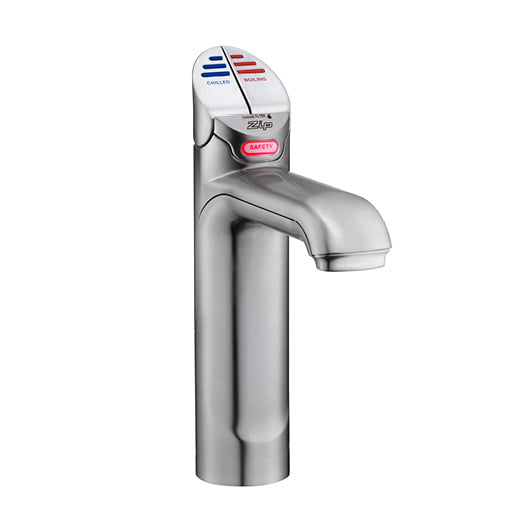

240V Classic Plus Boiling, Chilled (BC) Specifications

Classic BC Tap Specifications:
  • Style: HydroTap Classic BC – includes child safety lock
  • Hole Size: 1-3/8″ / 35mm
  • Available Finishes: Chrome, Brushed Chrome, Matte Black
  • Installation: Over sink as a secondary tap or on optional font/drip tray
  • Flow Rate Max: 1.8 gpm / 6.8lpm
240V BCS Command Center:
  • Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
  • Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
  • Integral Water Valves: HydroTaps are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1.5-Size – Replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
  • Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
  • Dimensions (WxDxH): 15.5” x 18.3” x 13.1” / 395mm x 464mm x 333mm (excluding vent duct)
  • Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
  • Dry Weight: 66lbs / 30kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
  • Warranty: 2 years
Download Specifications

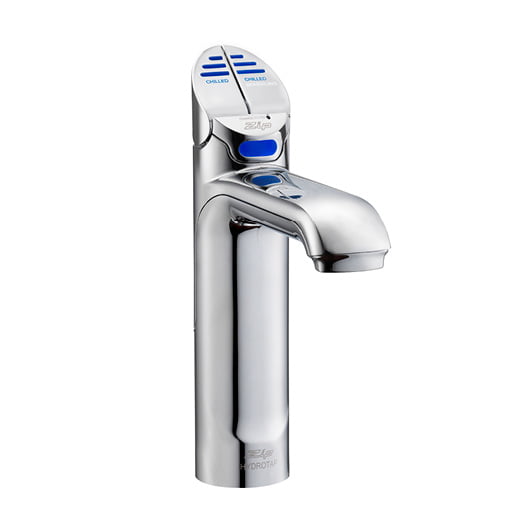

240V Classic Chilled, Sparkling (CS) Specifications

Classic CS Tap Specifications:
  • Style: HydroTap Classic CS
  • Hole Size: 1-3/8″ / 35mm
  • Available Finishes: Chrome, Brushed Chrome, Matte Black
  • Installation: Over sink as a secondary tap or on optional font/drip tray
  • Flow Rate Max: 1.8 gpm / 6.8lpm
240V CS Command Center:
  • Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
  • Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
  • Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1.5 size – replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
  • Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
  • Dimensions (WxDxH): 11” x 18.9” x 13.1” / 280mm x 480mm x 333mm
  • Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
  • Dry Weight: 80.5lbs / 36.5kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
  • Warranty: 2 years
Download Specifications
