HydroTap Cube Plus for Home

HydroTap Cube for Home

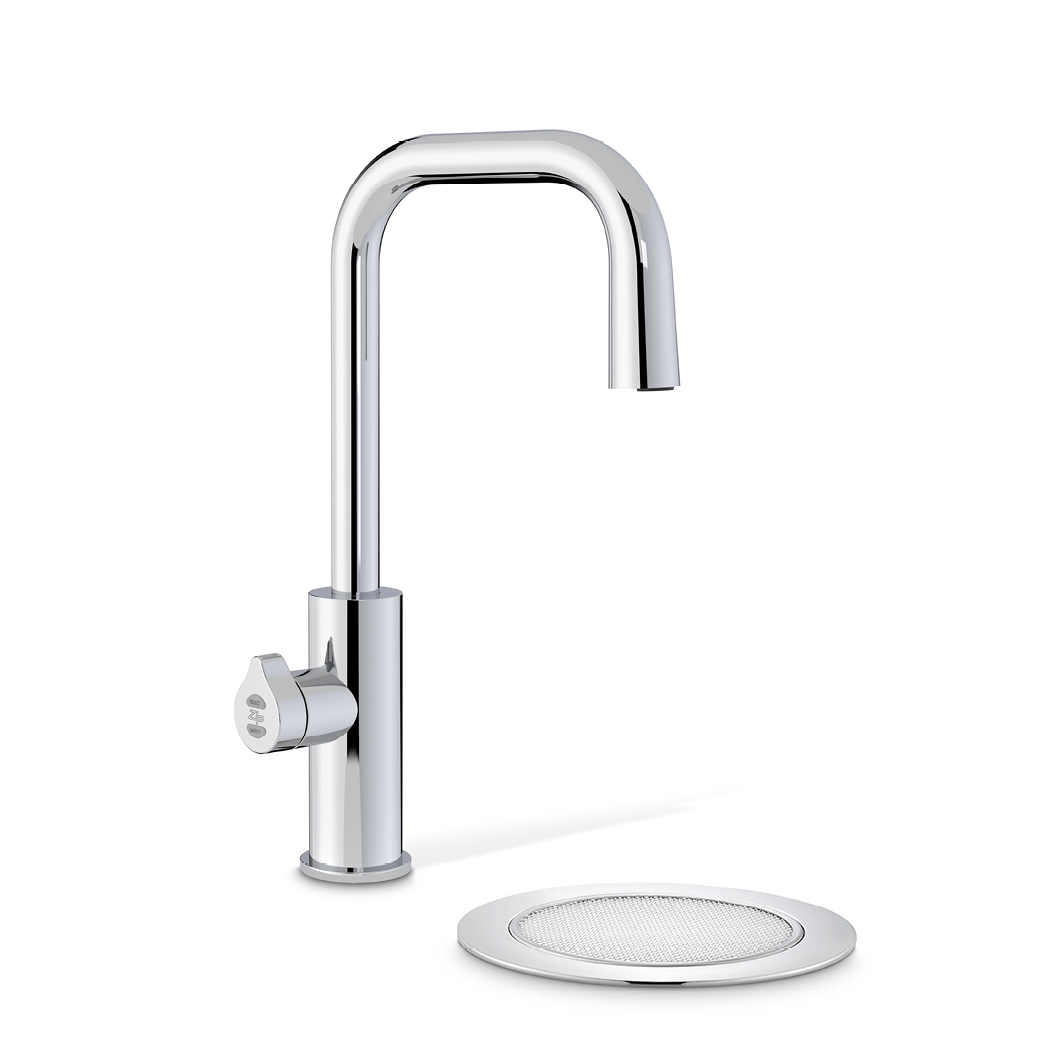

HydroTap Cube Plus in Chrome on Optional Font_Hero

Step into the future of kitchen innovation with the HydroTap Cube Plus – a modern marvel that seamlessly blends form and function. Embrace a contemporary twist on the traditional tap design with its sleek, squared-off silhouette with softened rounded corners, adding a touch of sophistication to any kitchen or wet bar space.

The HydroTap Cube Plus isn’t just about aesthetics – it’s about transforming the way you experience water in your home. With its advanced technology, this multi-function tap delivers filtered boiling, chilled, and sparkling water at the touch of a button, revolutionizing your hydration and culinary endeavors.

Transform your kitchen. Elevate your lifestyle. Choose the HydroTap Cube Plus.

Request Quote
Request BIM Library

Please use the expandable menu below to view full product specifications.

HydroTap Cube Plus 120V Boiling, Chilled, Sparkling (BCS) Specifications

HydroTap Cube Plus BCS Tap Specifications:

  • Style: HydroTap Cube Plus – includes child safety lock
  • Hole Size: (35mm) 1-3/8″

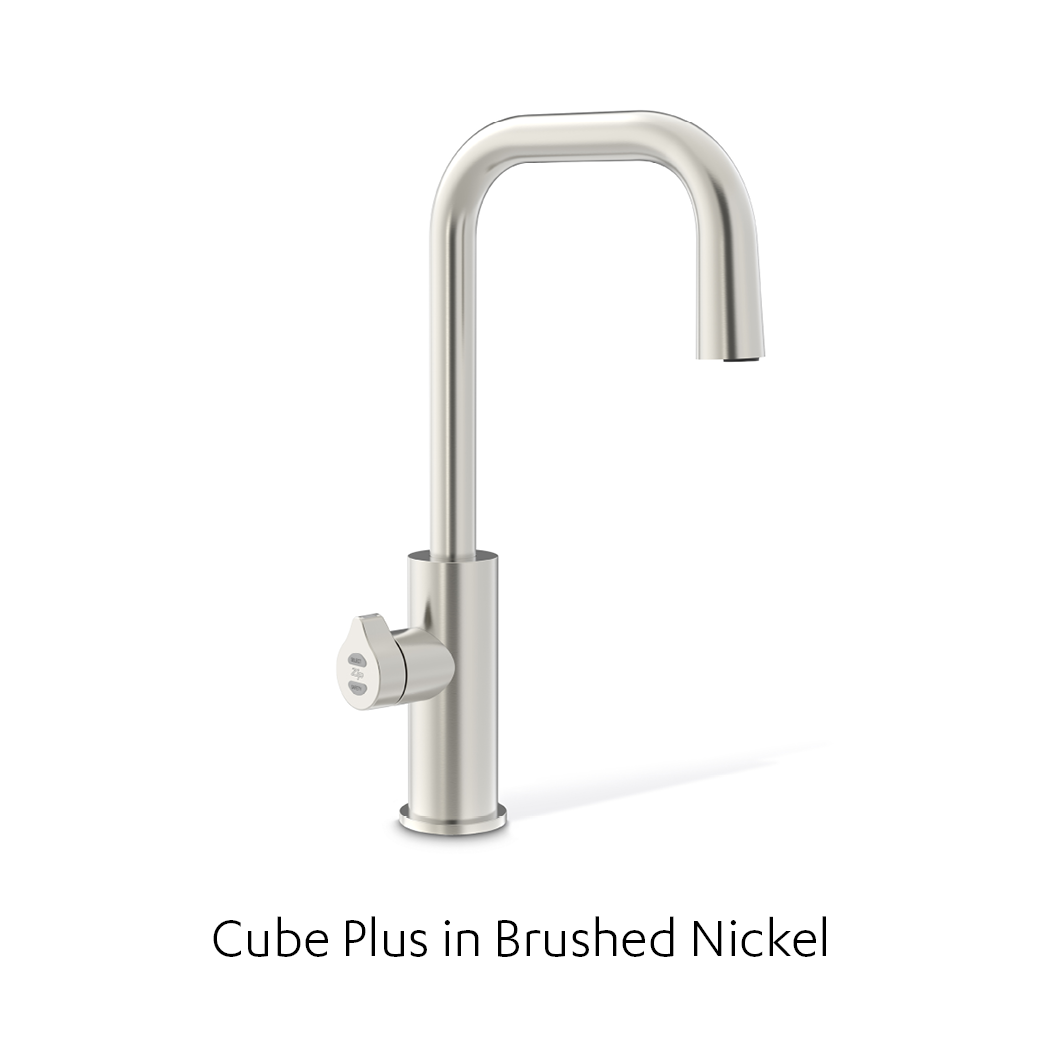

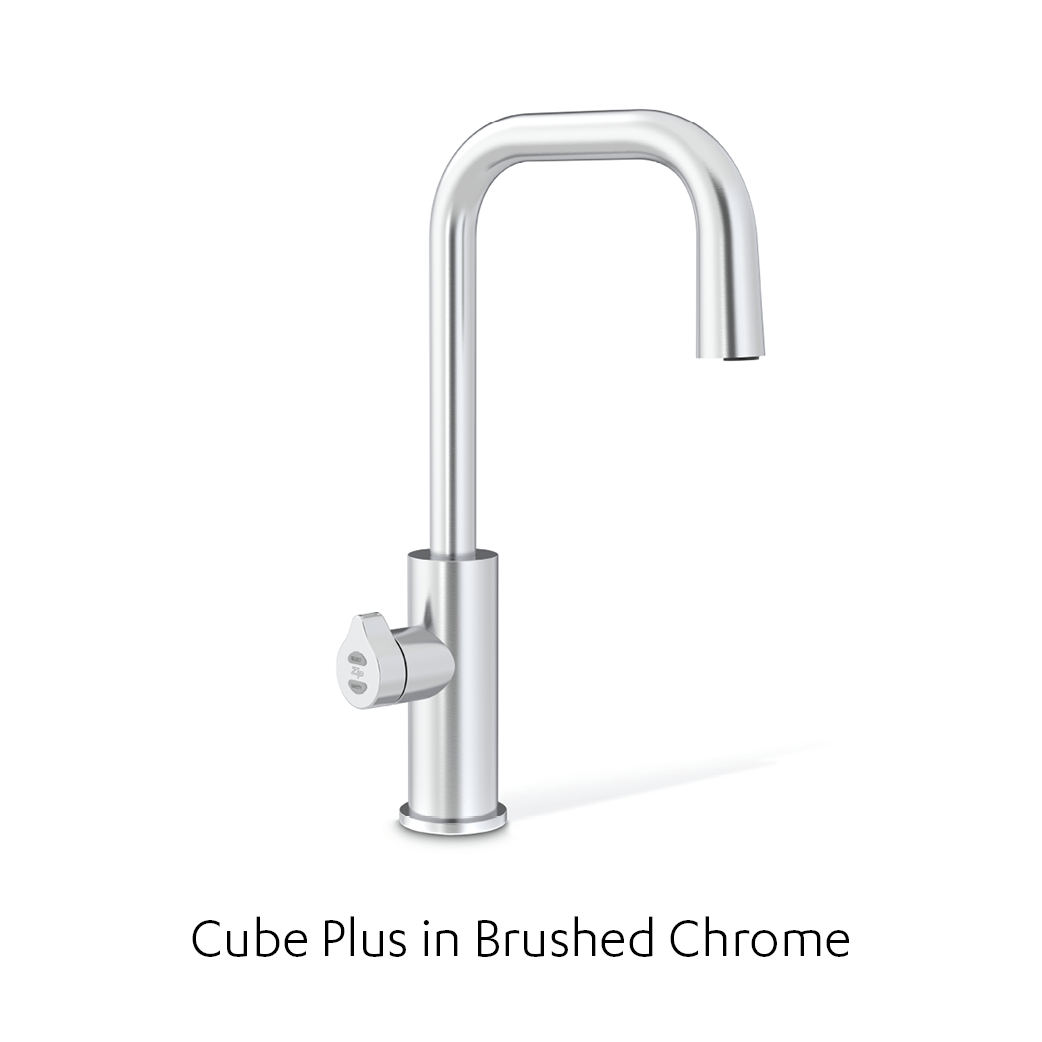

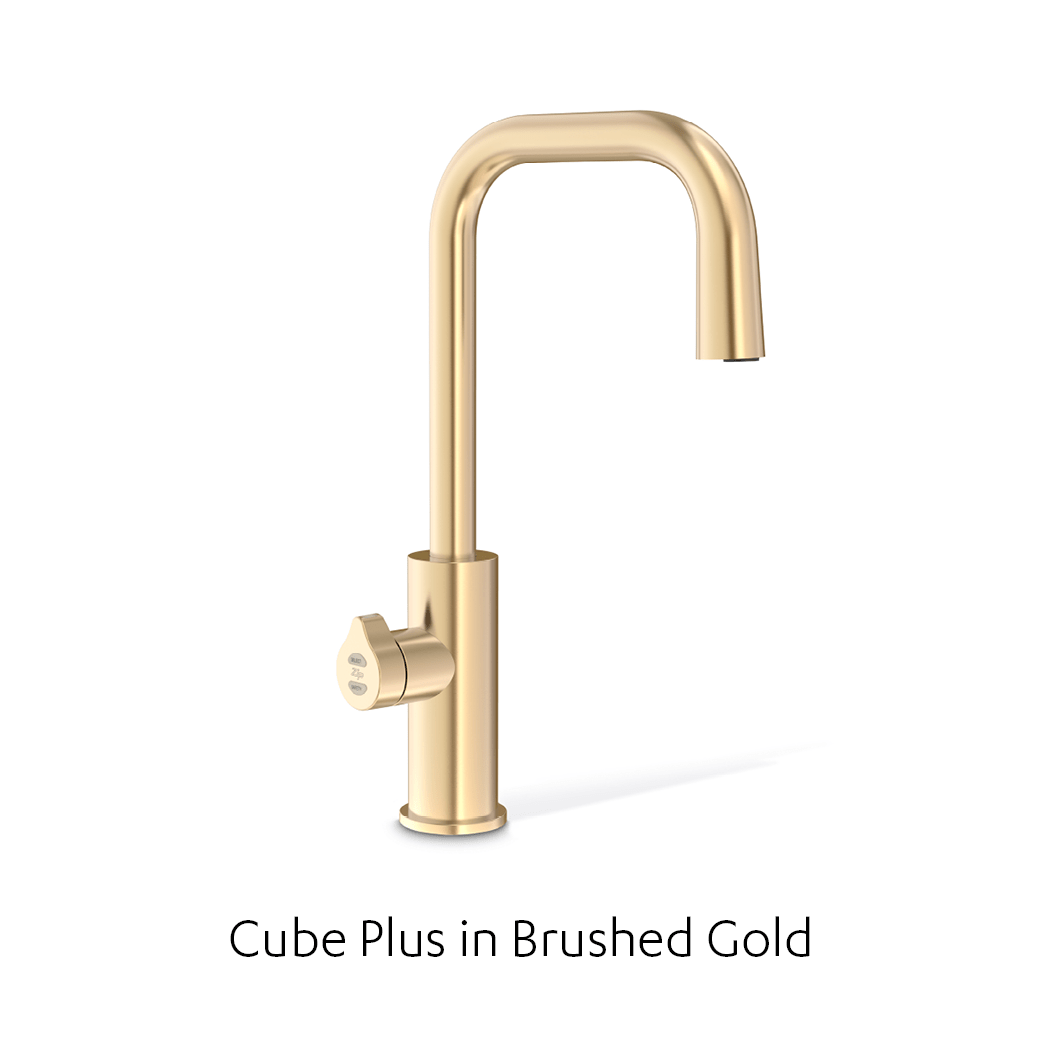

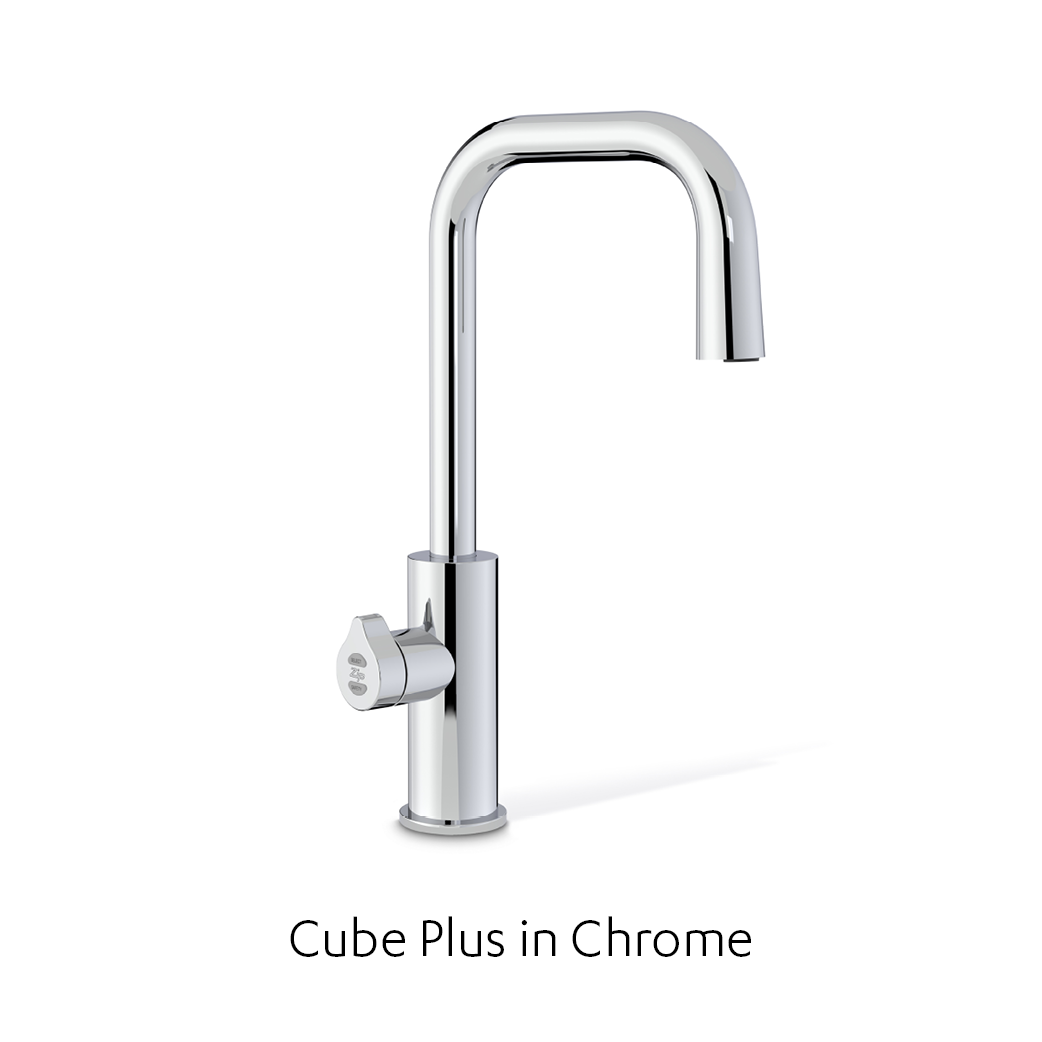

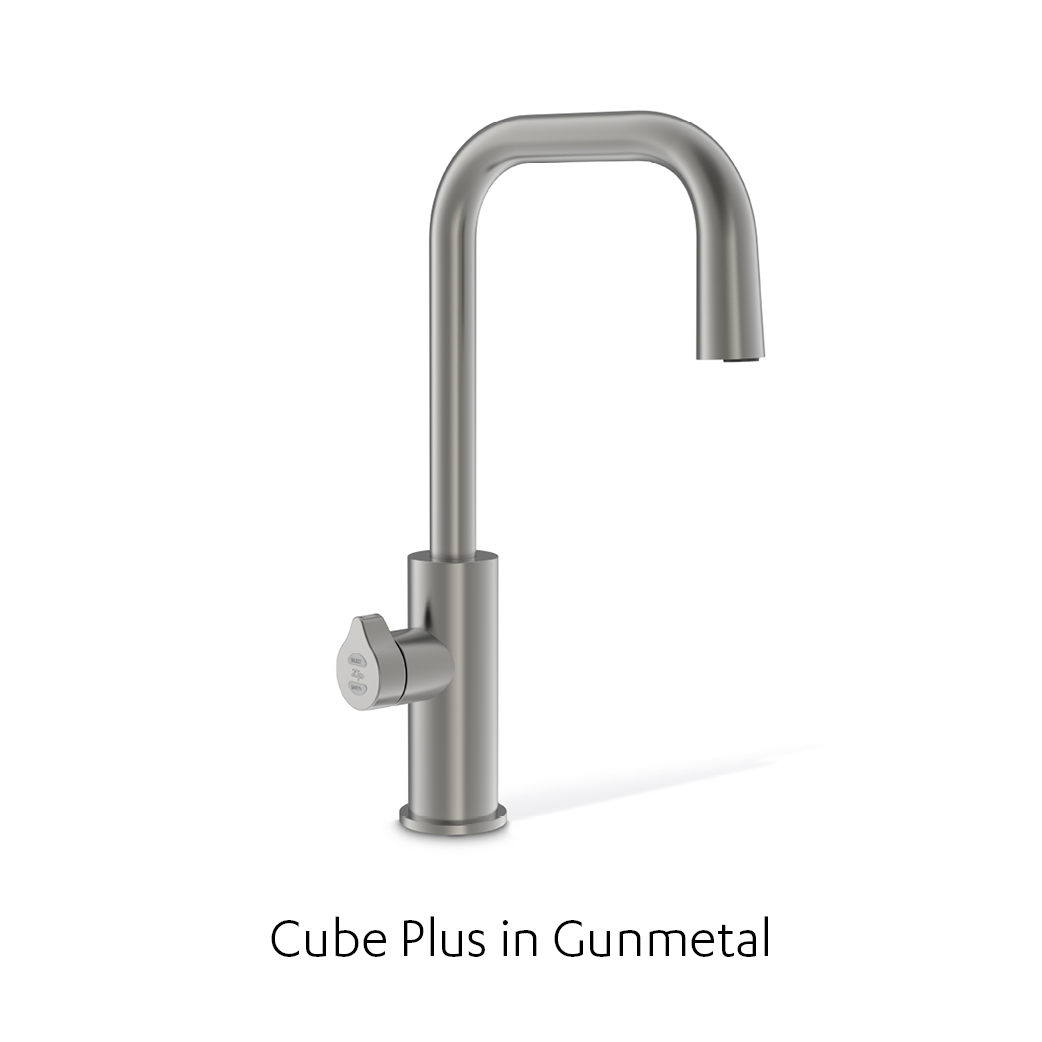

  • Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Brushed Nickel & Gunmetal
  • Installation: Over Sink or On Drip Tray (Optional Font – see accessories)
  • Flow Rate Max: 1.8 gpm / 6.81 lpm
  • Sparkling Water Flow Rate: 0.4 gpm / 1.51 lpm

120V BCS Command Center Specifications:

  • Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
  • Water Connection: ½” BSP – isolation valve is required within 3’ (0.9m) of the installation
  • Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 73psi (5.13kg/cm2) Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1 size – replace every 1,100 gallons / 4,163 liters or 12 months
  • Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
  • Dimensions (WxDxH): 13.3” x 18.2” x 13.1” / 339mm x 462mm x 333mm
  • Minimum Air Gap: Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
  • Minimum Cabinet Size: 18” wide x 24” deep / 457mm wide x 610mm deep
  • Maximum Hose Connection Length: 3’ / 0.9m (tap to command center)
  • Minimum Distance Needed for Installation: 15” / 381mm (interior wall to garbage disposal)
  • Dry Weight: 75lbs / 34kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
  • Warranty: 2 years
  • Compatible CO2 Cylinder: Zip Water 1.5lb CO2 or 5lb CO2 (if space allows) with CGA-320 fitting
  • CO2 Operating Pressure: Min 39psi – Max 44psi / Min 2.74 – Max 3.09kg/cm2
Download Specifications

HydroTap Cube Plus 120V Boiling, Chilled (BC) Specifications

HydroTap Cube Plus BC Tap Specifications:

  • Style: HydroTap Cube Plus – includes child safety lock
  • Hole Size: (35mm) 1-3/8″
  • Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Brushed Nickel & Gunmetal
  • Installation: Over Sink or On Drip Tray (Optional Font – see accessories)
  • Flow Rate Max: 1.8 gpm / 6.81 lpm

120V BC Command Center Specifications:

  • Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
  • Water Connection: ½” BSP – isolation valve is required within 3’ (0.9m) of the installation
  • Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 73psi (5.13kg/cm2) Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1 size – replace every 1,100 gallons / 4,163 liters or 12 months
  • Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
  • Dimensions (WxDxH): 18” wide x 24” deep / 457mm wide x 609mm deep
  • Minimum Air Gap: Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
  • Minimum Cabinet Size: 18” wide x 24” deep / 457mm wide x 610mm deep
  • Maximum Hose Connection Length: 3’ / 0.9m (tap to command center)
  • Minimum Distance Needed for Installation: 15” / 381mm (interior wall to garbage disposal)
  • Dry Weight: 66lbs / 30kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
  • Warranty: 2 years
Download Specifications

HydroTap Cube Plus 120V Chilled, Sparkling (CS) Specifications

HydroTap Cube CS Tap Specifications:

  • Style: HydroTap Cube
  • Hole Size:  1-3/8″ (35mm)
  • Available Finishes: Chrome, Brushed Chrome, Matte Black, Brushed Gold, Nickel, Brushed Nickel & Gunmetal
  • Installation: Over Sink or On Drip Tray (Optional Font – see accessories)
  • Flow Rate Max: 1.8 gpm / 6.81 lpm

120V CS Command Center Specifications:

  • Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
  • Water Connection: ½” BSP – isolation valve is required within 3’ (0.9m) of the installation
  • Integral Water Values: All HydroTap systems are fitted with a Dual Check Valve and a 73psi (5.13kg/cm2) Pressure Limiting Valve
  • Water Supply Requirements: Potable drinking water supply
  • Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
  • Integral Water Filter: 0.2 micron, 1 size – replace every 1,100 gallons / 4,163 liters or 12 months
  • Power Rating: 110-120V, 50-60Hz, 15 amp power supply with a NEMA 5-15 outlet
  • Dimensions (WxDxH): 11” x 16” x 13.1” / 280mm x 406mm x 333mm
  • Minimum Air Gap: Minimum of 2” / 50mm clearance on left and right side and 8” / 200mm above
  • Minimum Cabinet Size: 18” wide x 15” deep / 457.2mm wide x 381mm deep
  • Maximum Hose Connection Length: 3’ / 0.9m (tap to command center)
  • Minimum Distance Needed for Installation: 15” / 381mm (interior wall to garbage disposal)
  • Dry Weight: 66lbs / 30kg
  • Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1087; cUL; CEC
  • Warranty: 2 years
Download Specifications
