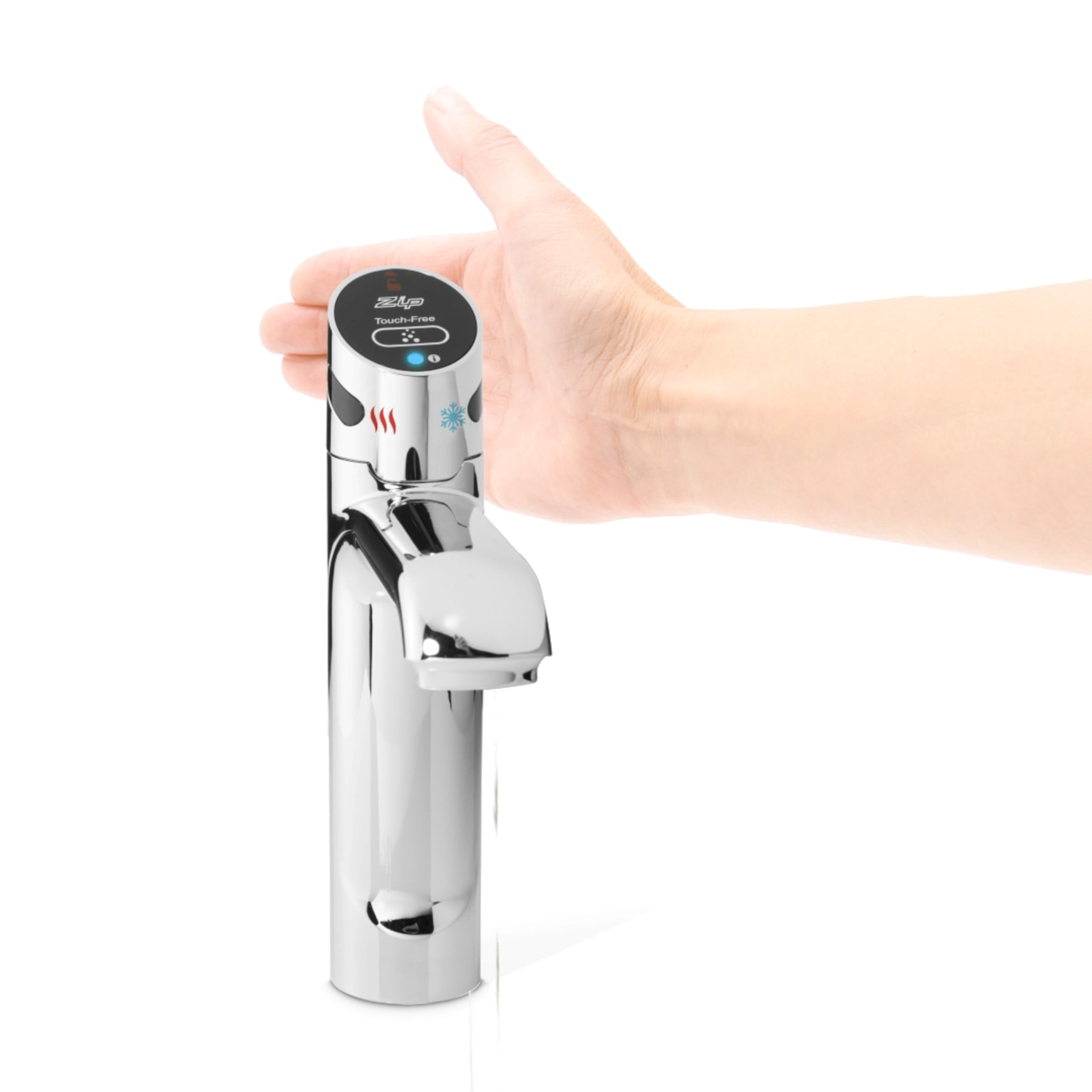

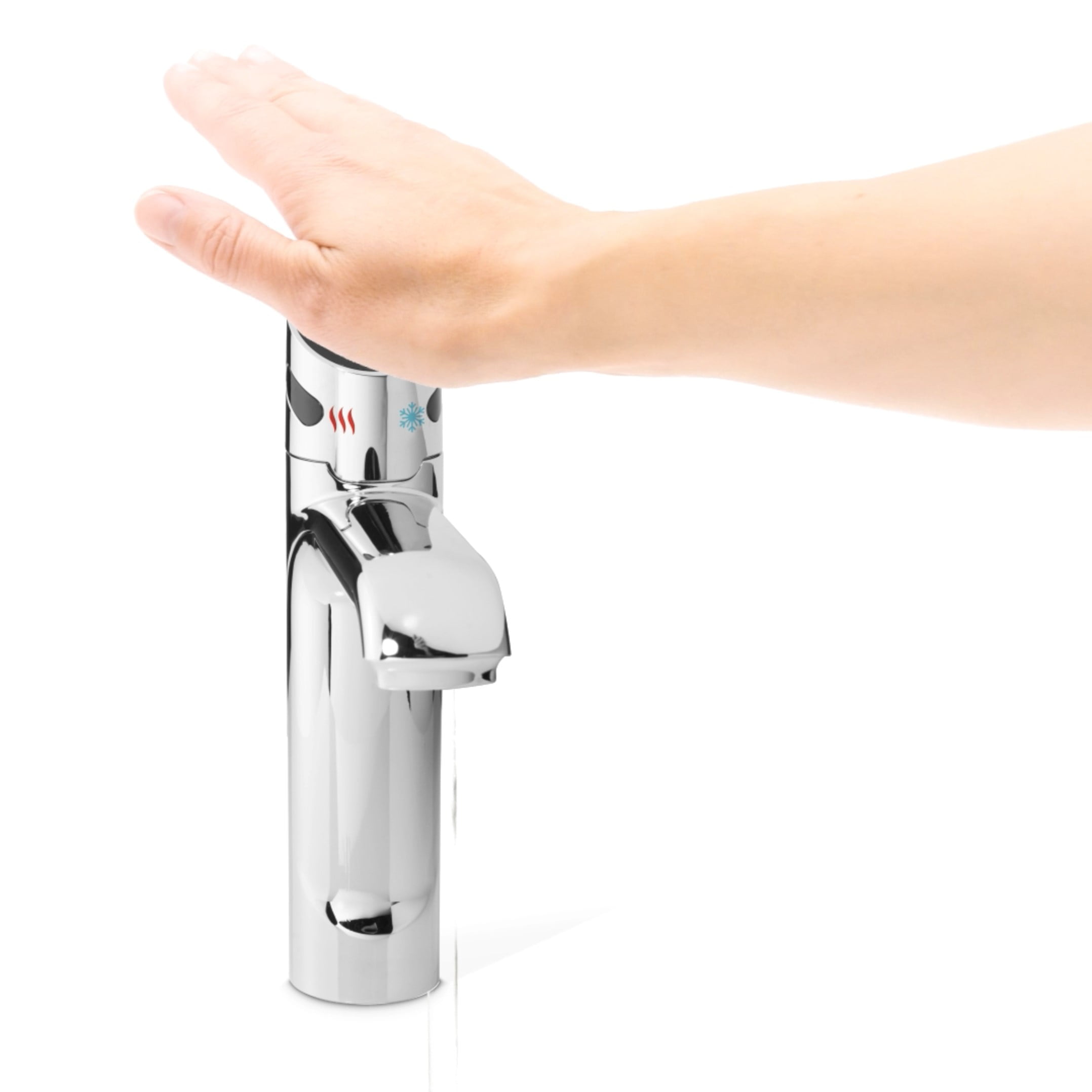

To reduce shared touchpoints in the workplace, the HydroTap Touch-Free Wave provides a 100% touch-free solution to instantly dispense pure-tasting drinking water with a simple wave of the hand.
*Our commercial systems are ideal for up to 60 users.
HydroTap Touch-Free Wave for Office
Please use the expandable menus below to view full product specifications.
Touch-Free Wave BCS Tap Specifications:
- Style: HydroTap Touch-Free Wave BCS – includes child safety lock
- Hole Size: 1-3/8″ / 35mm

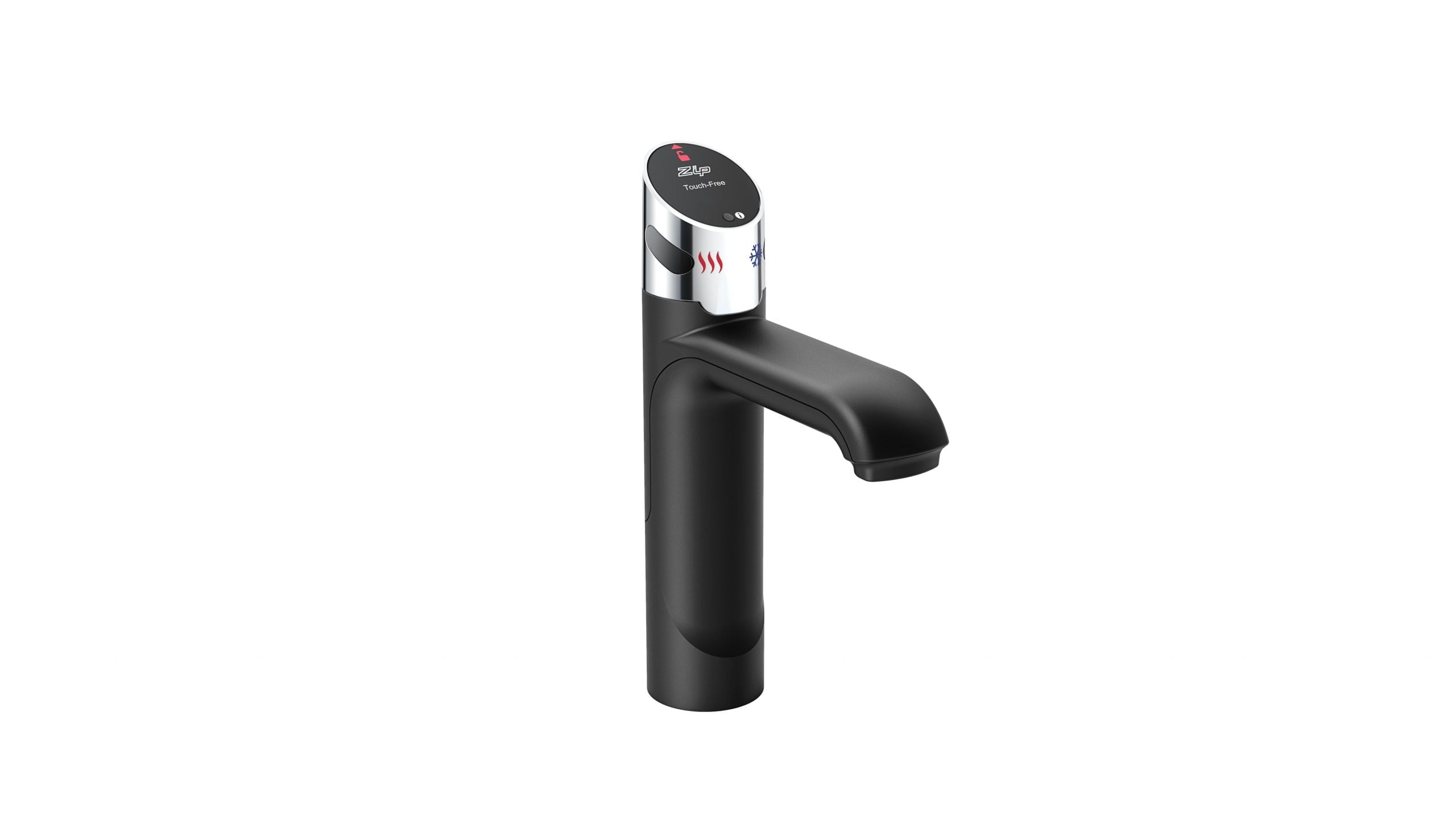

- Available Finishes: Chrome, Matte Black with Chrome Accents
- Installation: Over sink as a secondary tap or on optional font/drip tray
- Flow Rate Max: 1.8 gpm / 6.81lpm
240V BCS Command Center:
- Water Pressure: Min 30psi – Max 75psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79 lpm)
- Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1-Size – Replace every 1,100 gallons /4,163 liters or 12 months
- Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
- Dimensions (WxDxH): 13.4″ x 18.2″ x 13.1″ / 339mm x 461mm x 333mm
- Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
- Dry Weight: 85lbs / 38.5kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42 & 53, cUL, CEC
- Warranty: 2 years
- Compatible CO2 Cylinder: Zip Water 1.5lb CO2 or 5lb CO2 (if space allows) with CGA-320 fitting
- CO2 Operating Pressure: Min 39psi – Max 44psi / Min 2.74 – Max 3.09kg/cm2
Touch-Free Wave BC Tap Specifications:
- Style: HydroTap Touch-Free Wave BC – includes child safety lock
- Hole Size: 1-3/8″ / 35mm
- Available Finishes: Chrome, Matte Black with Chrome Accents
- Installation: Over sink as a secondary tap or on optional font/drip tray
- Flow Rate Max: 1.8 gpm / 6.8lpm
240V BCS Command Center:
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual Check Valve and a 50psi (3.52kg/cm2) Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1.5-Size – Replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
- Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
- Dimensions (WxDxH): 15.5” x 18.3” x 13.1” / 395mm x 464mm x 333mm (excluding vent duct)
- Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
- Dry Weight: 66lbs / 30kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 2 years
Touch-Free Wave CS Tap Specifications:
- Style: HydroTap Touch-Free Wave CS
- Hole Size: 1-3/8″ / 35mm
- Available Finishes: Chrome
- Installation: Over sink as a secondary tap or on optional font/drip tray
- Flow Rate Max: 1.8 gpm / 6.8lpm
240V CS Command Center:
- Water Pressure: Min 37psi – Max 100psi (2.60 – 7.03kg/cm2 ) with a minimum flow rate of 1 gpm (3.79lpm)
- Water Connection: 1 x ½” BSP – isolation valve is required within 3′ / 0.9m of the installation
- Integral Water Valves: HydroTaps are fitted with a Dual check valve and a 50psi Pressure Limiting Valve
- Water Supply Requirements: Potable drinking water supply
- Optimal Total Dissolved Solids (TDS) Range: TDS Min 50ppm – Max 150ppm
- Integral Water Filter: 0.2 micron, 1.5 size – replace every 1,800 gallons / 6,813 liters (~6 months for a large office)
- Power Rating: 220-240V, 50-60Hz, 15 amp power supply with a NEMA 6-15 outlet
- Dimensions (WxDxH): 11” x 18.9” x 13.1” / 280mm x 480mm x 333mm
- Minimum Air Gap: Clearances are required – 2″ / 50mm Left side, 2″ / 50mm Right side , 8″ / 200mm above
- Dry Weight: 80.5lbs / 36.5kg
- Product Approvals: IAPMO – NSF/ANSI 372, 42, 53, CSA B483.1, ASSE 1023, ASSE 1087; cUL; CEC
- Warranty: 2 years
- Compatible CO2 Cylinder: Zip Water 1.5lb CO2 or 5lb CO2 (if space allows) with CGA-320 fitting
- CO2 Operating Pressure: Min 39psi – Max 44psi / Min 2.74 – Max 3.09kg/cm2
